Description
1,500W Max / 400W RMS
High Power Handling and High Endurance

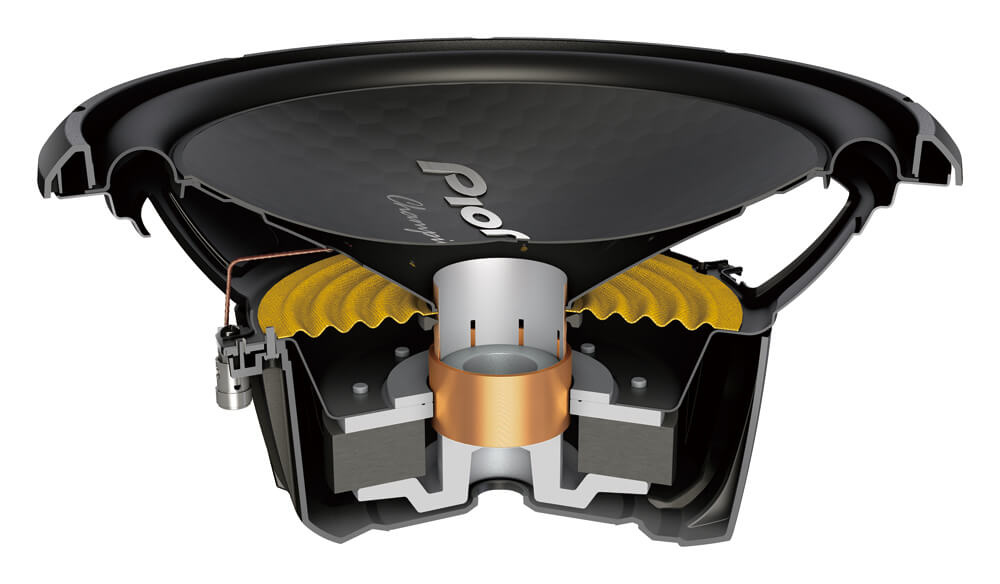

Durable rubber surround. High heat resistance voice coil.
Deeper and Louder Bass

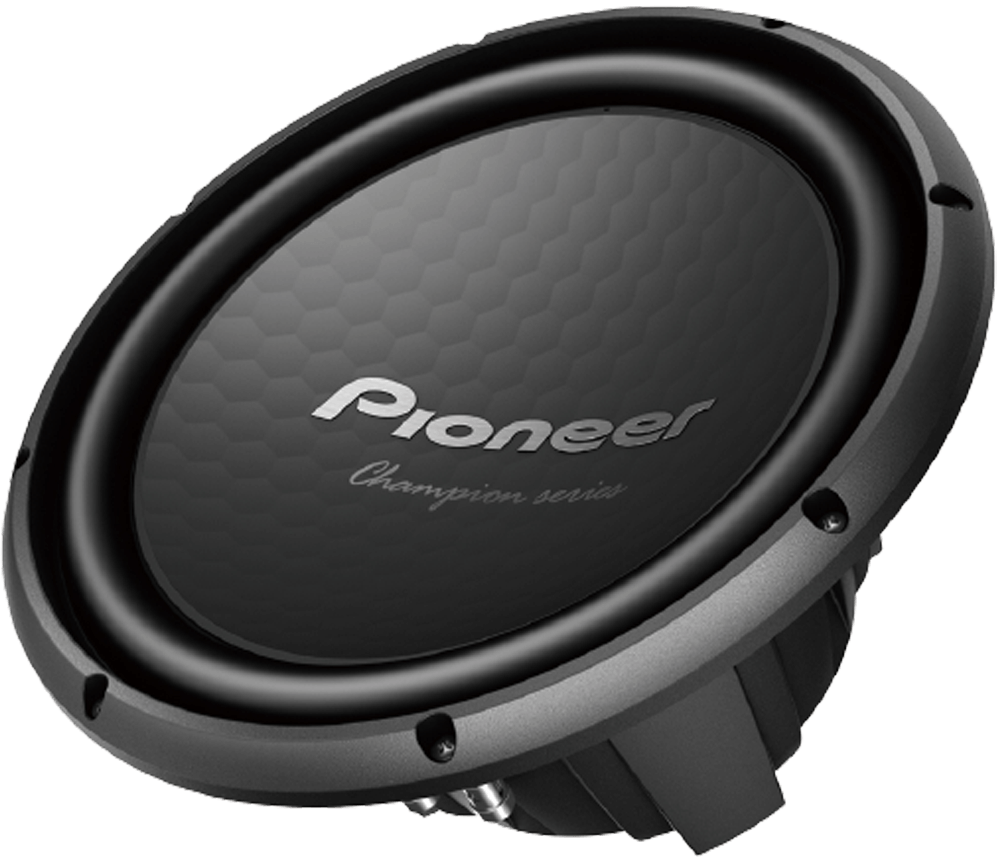

High rigidity IMPP™ composite seamless cone with honeycomb. Double stacked large magnets.
High Reliability and Tough Body Design

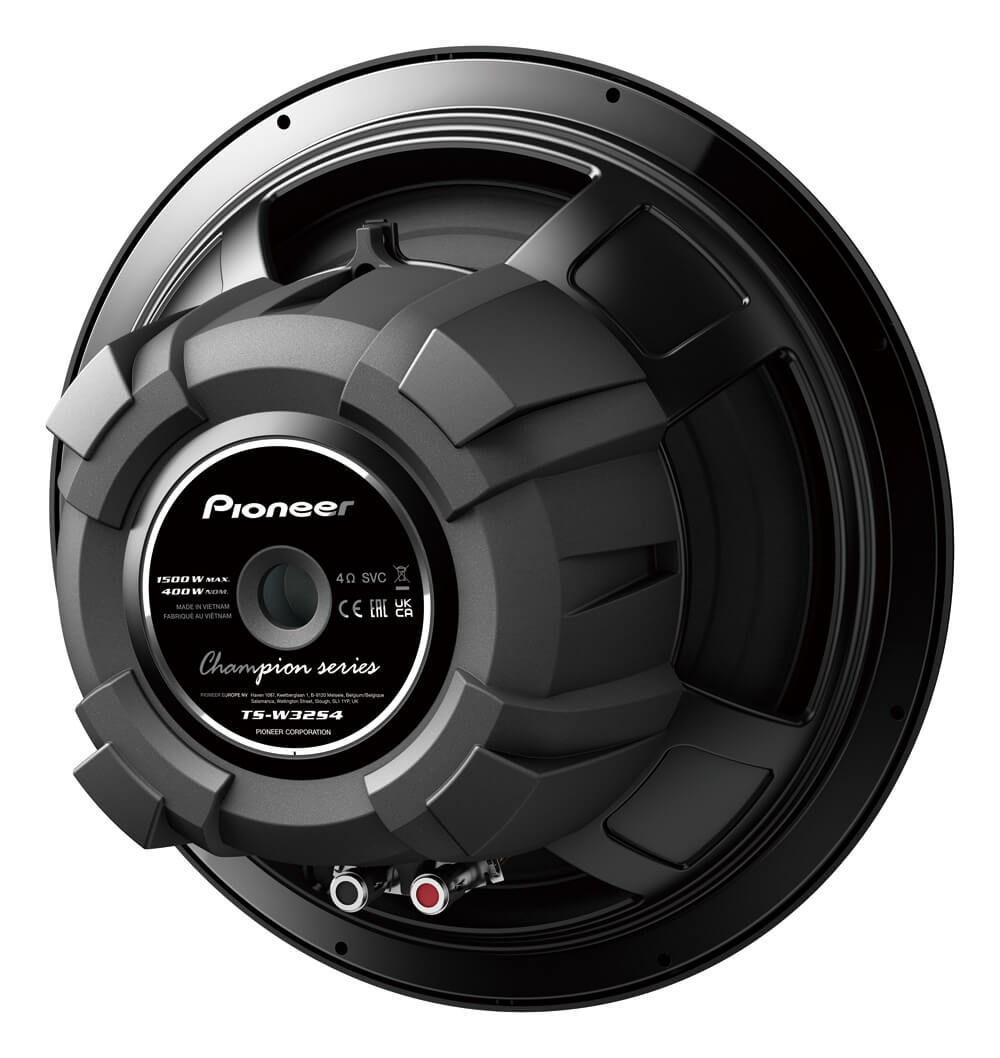

Seamless large cone and magnet cover like the TS-W312S4/D4. Push terminals for easier installation.
GRADEChampion Series
Size30 cm (12″)
Maximum Music Power1500 W
RMS400 W
Frequency Response22 Hz to 1.6 kHz
Sensitivity ( 1W / 1m )90 db
ImpedanceSingle 4Ω
Mounting Depth146 mm
Cut-Out Dimensionsø281 mm
Resonance Frequency30 Hz
Xmax11.6 mm
Magnet Weight1,300 g
Recommended Enclosure35.4 liters
